SpringBoot-整合Druid连接池

perfree
2019-01-05 / 0 评论 / 2171 阅读 / 0 点赞

Druid是阿里巴巴开源平台上一个数据库连接池实现,它结合了C3P0、DBCP、PROXOOL等DB池的优点,同时加入了日志监控,可以很好的监控DB池连接和SQL的执行情况,可以说是针对监控而生的DB连接池,据说是目前最好的连接池......下面就利用SpringBoot进行Druid的整合,本实例Github地址07-druid

Pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.perfree</groupId>
    <artifactId>druid</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>druid</name>
    <description>SpringBoot-Druid-Demo</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.5.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- mybatis -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!-- mysql驱动包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.39</version>
        </dependency>
        <!-- 阿里云druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.0.25</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

关键依赖:

<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-configuration-processor</artifactId>
	<optional>true</optional>
</dependency>
<!-- mybatis -->
<dependency>
	<groupId>org.mybatis.spring.boot</groupId>
	<artifactId>mybatis-spring-boot-starter</artifactId>
	<version>1.3.2</version>
</dependency>
<!-- mysql驱动包 -->
<dependency>
	<groupId>mysql</groupId>
	<artifactId>mysql-connector-java</artifactId>
	<version>5.1.39</version>
</dependency>
<!-- 阿里云druid -->
<dependency>
	<groupId>com.alibaba</groupId>
	<artifactId>druid</artifactId>
	<version>1.0.25</version>
</dependency>

数据库准备

/*
Navicat MySQL Data Transfer

Source Server         : perfree-pc
Source Server Version : 50621
Source Host           : localhost:3306
Source Database       : springboot

Target Server Type    : MYSQL
Target Server Version : 50621
File Encoding         : 65001

Date: 2018-10-03 10:18:50
*/

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键',
  `name` varchar(50) DEFAULT NULL COMMENT '姓名',
  `age` int(11) DEFAULT NULL COMMENT '年龄',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('1', '张三', '21');
INSERT INTO `user` VALUES ('2', '李四', '23');
INSERT INTO `user` VALUES ('3', '王二', '22');
INSERT INTO `user` VALUES ('4', '陈某', '25');
INSERT INTO `user` VALUES ('5', '刘某', '20');

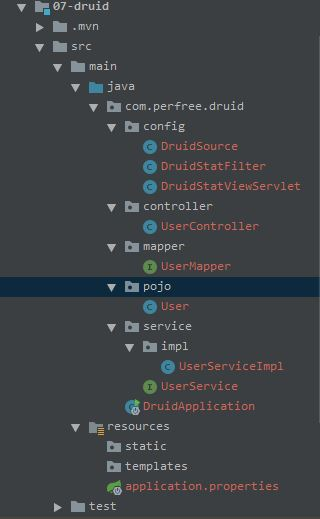

项目文件一览

mapper、controller、service、pojo请参考SpringBoot-整合Mybatis-Annotation方式,本文不再啰嗦一遍了,或者可以直接去上边提到的github仓库拿源码进行参考

application.properties配置文件

# 驱动配置信息
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.url = jdbc:mysql://localhost:3306/springboot?characterEncoding=utf8
spring.datasource.username = root
spring.datasource.password = 215521
spring.datasource.driverClassName = com.mysql.jdbc.Driver

#连接池的配置信息
## 初始化大小,最小,最大
spring.druid.initialSize=5
spring.druid.minIdle=5
spring.druid.maxActive=20
## 配置获取连接等待超时的时间
spring.druid.maxWait=60000
# 配置间隔多久才进行一次检测,检测需要关闭的空闲连接,单位是毫秒
spring.druid.timeBetweenEvictionRunsMillis=60000
# 配置一个连接在池中最小生存的时间,单位是毫秒
spring.druid.minEvictableIdleTimeMillis=300000
spring.druid.validationQuery=SELECT 1 FROM DUAL
spring.druid.testWhileIdle=true
spring.druid.testOnBorrow=false
spring.druid.testOnReturn=false
spring.druid.poolPreparedStatements=true
spring.druid.maxPoolPreparedStatementPerConnectionSize=20
# 配置监控统计拦截的filters,去掉后监控界面sql无法统计,'wall'用于防火墙
spring.druid.filters=stat,wall,log4j
# 通过connectProperties属性来打开mergeSql功能;慢SQL记录
spring.druid.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000

DruidSource配置信息的定制

DruidSource.java:

package com.perfree.druid.config;

import com.alibaba.druid.pool.DruidDataSource;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Primary;

import javax.sql.DataSource;
import java.sql.SQLException;
/**
 * @ClassName DruidSource
 * @Description TODO(DruidSource配置信息的定制)
 * @Author Perfree
 * @Date 2018/10/3 13:12
 * @Version 1.0
 */

@ConfigurationProperties(prefix = "spring.druid")
public class DruidSource {

    private String dbUrl;

    private String username;

    private String password;

    private String driverClassName;

    private int initialSize;

    private int minIdle;

    private int maxActive;

    private int maxWait;

    private int timeBetweenEvictionRunsMillis;

    private int minEvictableIdleTimeMillis;
    private String validationQuery;

    private boolean testWhileIdle;
    private boolean testOnBorrow;

    private boolean testOnReturn;

    private boolean poolPreparedStatements;

    private int maxPoolPreparedStatementPerConnectionSize;

    private String filters;

    private String connectionProperties;

    public String getDbUrl() {
        return dbUrl;
    }

    public void setDbUrl(String dbUrl) {
        this.dbUrl = dbUrl;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getDriverClassName() {
        return driverClassName;
    }

    public void setDriverClassName(String driverClassName) {
        this.driverClassName = driverClassName;
    }

    public int getInitialSize() {
        return initialSize;
    }

    public void setInitialSize(int initialSize) {
        this.initialSize = initialSize;
    }

    public int getMinIdle() {
        return minIdle;
    }

    public void setMinIdle(int minIdle) {
        this.minIdle = minIdle;
    }

    public int getMaxActive() {
        return maxActive;
    }

    public void setMaxActive(int maxActive) {
        this.maxActive = maxActive;
    }

    public int getMaxWait() {
        return maxWait;
    }

    public void setMaxWait(int maxWait) {
        this.maxWait = maxWait;
    }

    public int getTimeBetweenEvictionRunsMillis() {
        return timeBetweenEvictionRunsMillis;
    }

    public void setTimeBetweenEvictionRunsMillis(int timeBetweenEvictionRunsMillis) {
        this.timeBetweenEvictionRunsMillis = timeBetweenEvictionRunsMillis;
    }

    public int getMinEvictableIdleTimeMillis() {
        return minEvictableIdleTimeMillis;
    }

    public void setMinEvictableIdleTimeMillis(int minEvictableIdleTimeMillis) {
        this.minEvictableIdleTimeMillis = minEvictableIdleTimeMillis;
    }

    public String getValidationQuery() {
        return validationQuery;
    }

    public void setValidationQuery(String validationQuery) {
        this.validationQuery = validationQuery;
    }

    public boolean isTestWhileIdle() {
        return testWhileIdle;
    }

    public void setTestWhileIdle(boolean testWhileIdle) {
        this.testWhileIdle = testWhileIdle;
    }

    public boolean isTestOnBorrow() {
        return testOnBorrow;
    }

    public void setTestOnBorrow(boolean testOnBorrow) {
        this.testOnBorrow = testOnBorrow;
    }

    public boolean isTestOnReturn() {
        return testOnReturn;
    }

    public void setTestOnReturn(boolean testOnReturn) {
        this.testOnReturn = testOnReturn;
    }

    public boolean isPoolPreparedStatements() {
        return poolPreparedStatements;
    }

    public void setPoolPreparedStatements(boolean poolPreparedStatements) {
        this.poolPreparedStatements = poolPreparedStatements;
    }

    public int getMaxPoolPreparedStatementPerConnectionSize() {
        return maxPoolPreparedStatementPerConnectionSize;
    }

    public void setMaxPoolPreparedStatementPerConnectionSize(int maxPoolPreparedStatementPerConnectionSize) {
        this.maxPoolPreparedStatementPerConnectionSize = maxPoolPreparedStatementPerConnectionSize;
    }

    public String getFilters() {
        return filters;
    }

    public void setFilters(String filters) {
        this.filters = filters;
    }

    public String getConnectionProperties() {
        return connectionProperties;
    }

    public void setConnectionProperties(String connectionProperties) {
        this.connectionProperties = connectionProperties;
    }

    @Bean   //声明其为Bean实例
    @Primary //在同样的DataSource中,首先使用被标注的DataSource
    public DataSource dataSource() throws SQLException {
        DruidDataSource datasource = new DruidDataSource();

        datasource.setUrl(this.dbUrl);
        datasource.setUsername(username);
        datasource.setPassword(password);
        datasource.setDriverClassName(driverClassName);

        //configuration
        datasource.setInitialSize(initialSize);
        datasource.setMinIdle(minIdle);
        datasource.setMaxActive(maxActive);
        datasource.setMaxWait(maxWait);
        datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
        datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
        datasource.setValidationQuery(validationQuery);
        datasource.setTestWhileIdle(testWhileIdle);
        datasource.setTestOnBorrow(testOnBorrow);
        datasource.setTestOnReturn(testOnReturn);
        datasource.setPoolPreparedStatements(poolPreparedStatements);
        datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);

        datasource.setFilters(filters);


        return datasource;
    }
}

基于注解的配置StatView的Servlet

DruidStatFilter.java

package com.perfree.druid.config;

import com.alibaba.druid.support.http.WebStatFilter;

import javax.servlet.annotation.WebFilter;
import javax.servlet.annotation.WebInitParam;

/**
 * @ClassName DruidStatFilter
 * @Description TODO(基于注解的配置StatView的Servlet)
 * @Author Perfree
 * @Date 2018/10/3 13:14
 * @Version 1.0
 */
@WebFilter(filterName = "druidWebStatFilter", urlPatterns = "/*",
        initParams = {
                @WebInitParam(name = "exclusions", value = "*.js,*.gif,*.jpg,*.bmp,*.png,*.css,*.ico,/druid/*")//忽略资源
        }
)
public class DruidStatFilter extends WebStatFilter {
}

DruidStatViewServlet

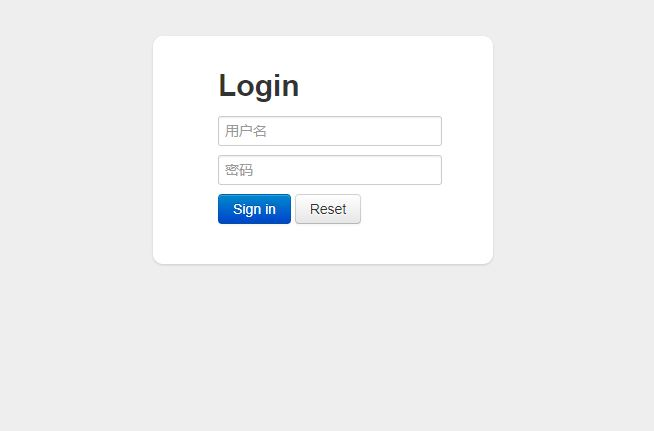

配置ip白名单,账户,密码等
DruidStatViewServlet.java

package com.perfree.druid.config;

import com.alibaba.druid.support.http.StatViewServlet;

import javax.servlet.annotation.WebInitParam;
import javax.servlet.annotation.WebServlet;

/**
 * @ClassName DruidStatViewServlet
 * @Description TODO(DruidStatViewServlet)
 * @Author Perfree
 * @Date 2018/10/3 13:16
 * @Version 1.0
 */
@WebServlet(urlPatterns = "/druid/*",
        initParams = {
                @WebInitParam(name = "allow", value = "127.0.0.1,47.104.251.24"),// IP白名单(没有配置或者为空,则允许所有访问)
                @WebInitParam(name = "deny", value = "47.104.251.24"),// IP黑名单 (存在共同时,deny优先于allow)
                @WebInitParam(name = "loginUsername", value = "admin"),// 用户名
                @WebInitParam(name = "loginPassword", value = "123456"),// 密码
                @WebInitParam(name = "resetEnable", value = "false")// 禁用HTML页面上的“Reset All”功能
        })
public class DruidStatViewServlet extends StatViewServlet {
    private static final long serialVersionUID = -2688872071445249539L;
}

启动类

加入@ServletComponentScan注解

package com.perfree.druid;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletComponentScan;

@ServletComponentScan
@SpringBootApplication
public class DruidApplication {

    public static void main(String[] args) {
        SpringApplication.run(DruidApplication.class, args);
    }
}

运行

访问http://127.0.0.1:8080/druid/ 出现如下界面:

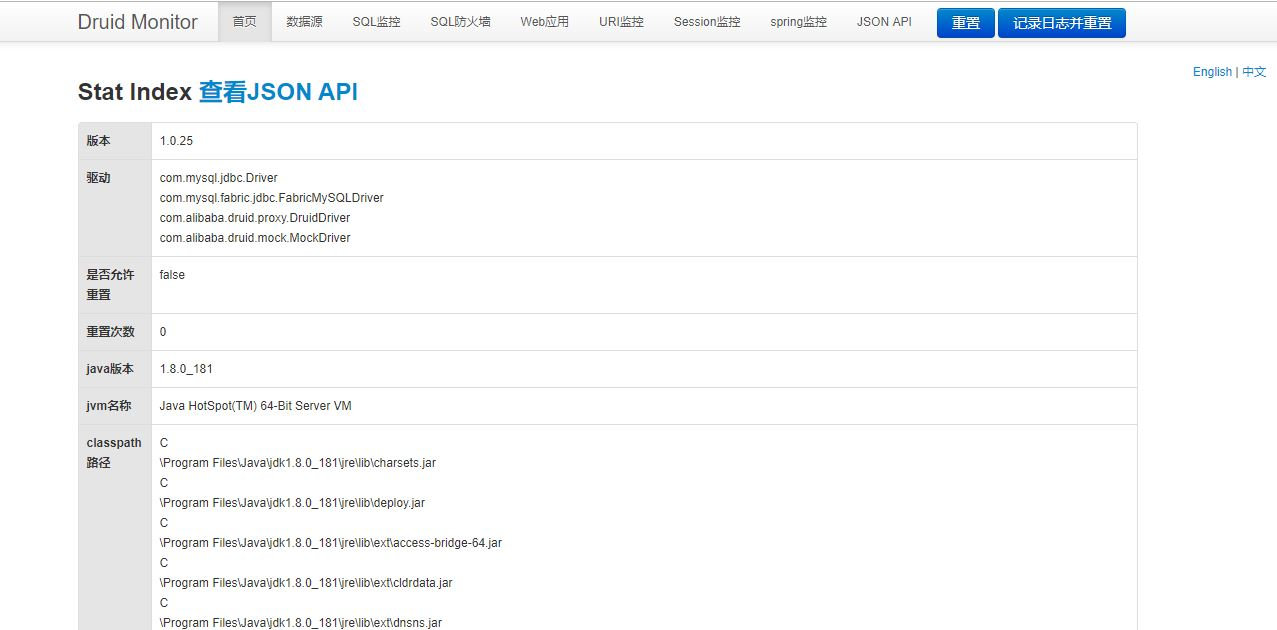

账号即为你在DruidStatViewServlet配置的账户密码,登录进去为如下界面:

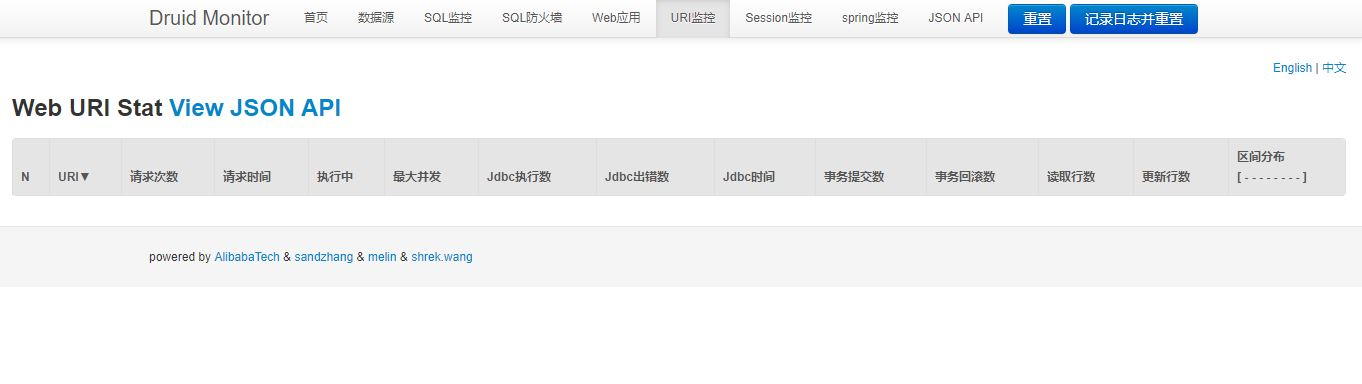

这时我们看一下uri监控:

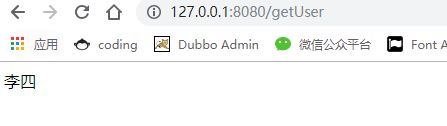

空空如也~,接下来访问一下我们配置的Controller:

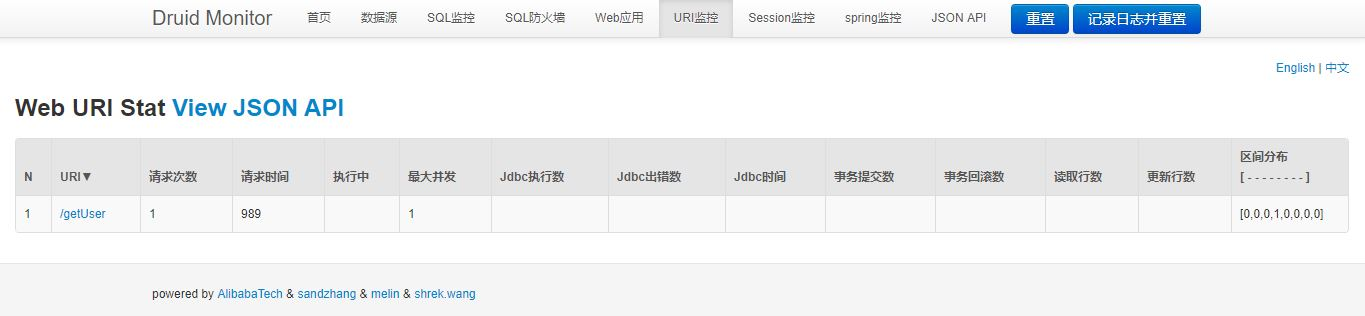

好的,拿到数据了,再来看下监控:

ok,到此就算是完成了SpringBoot与Druid的整合

文章不错,扫码支持一下吧~
上一篇 下一篇
评论
来首音乐
最新回复
光阴似箭
今日已经过去小时
这周已经过去
本月已经过去
今年已经过去个月
