SpringBoot-整合Mybatis-xml方式

perfree
2019-01-02 / 0 评论 / 2034 阅读 / 0 点赞

这里利用SpringBoot整合了Mybatis,本实例主要使用xml方式,接下来会有注解方式,本实例Github地址04-mybatis,废话不多说,接下来开始整合:

POM文件

这是完整的pom文件:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.perfree</groupId>
    <artifactId>mybatis</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>mybatis</name>
    <description>SpringBoot-Mybatis</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.5.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- SpringBoot Mybatis整合包 -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!-- mysql驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.39</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

其中本次整合关键依赖:

<dependency>
	<groupId>mysql</groupId>
	<artifactId>mysql-connector-java</artifactId>
	<version>5.1.39</version>
</dependency>
<dependency>
	<groupId>org.mybatis.spring.boot</groupId>
	<artifactId>mybatis-spring-boot-starter</artifactId>
	<version>1.3.2</version>
</dependency>

数据库准备

CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键',
  `name` varchar(50) DEFAULT NULL COMMENT '姓名',
  `age` int(11) DEFAULT NULL COMMENT '年龄',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES ('1', '张三', '21');
INSERT INTO `user` VALUES ('2', '李四', '23');
INSERT INTO `user` VALUES ('3', '王二', '22');

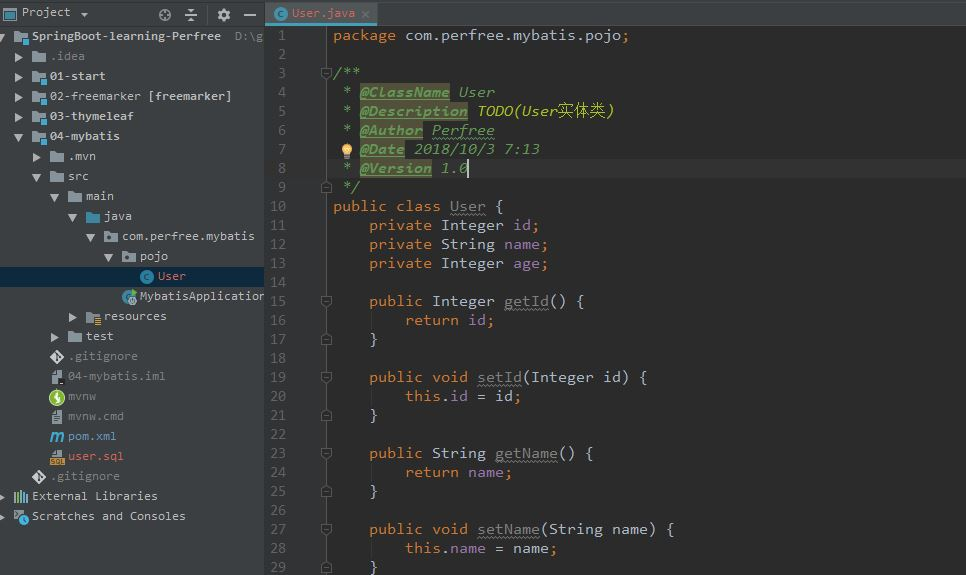

实体类

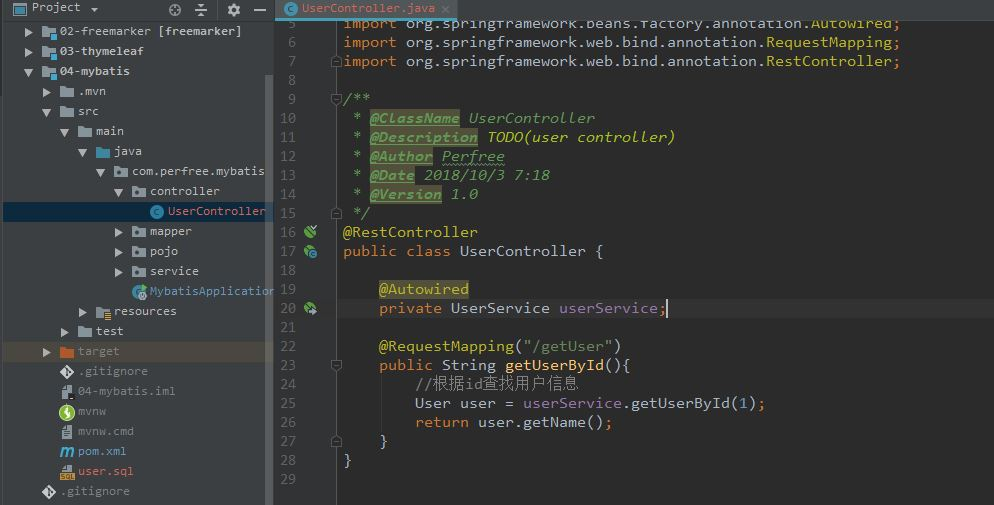

Controller

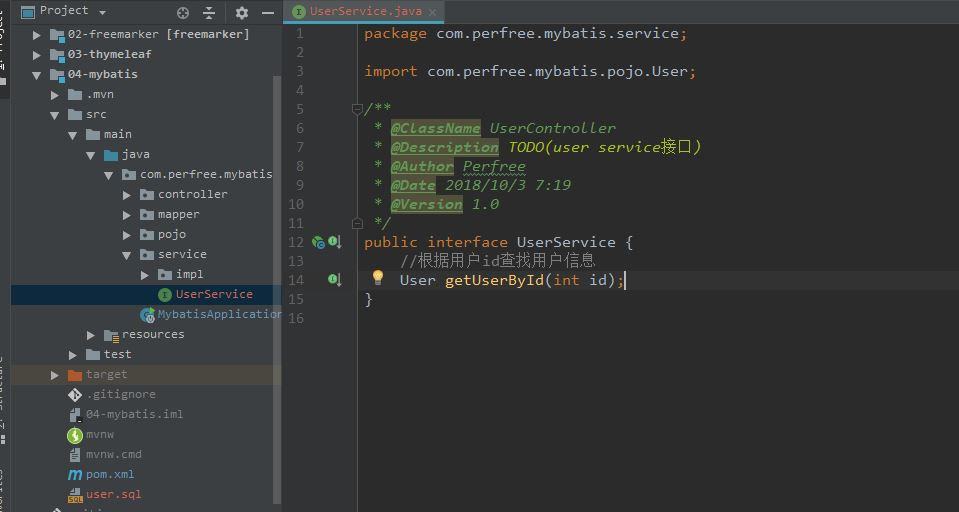

Service接口

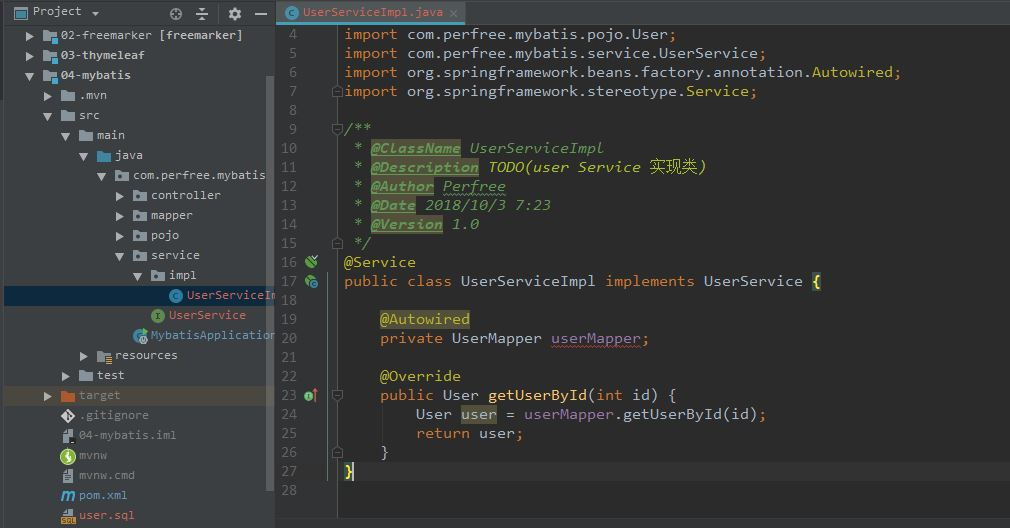

Service实现

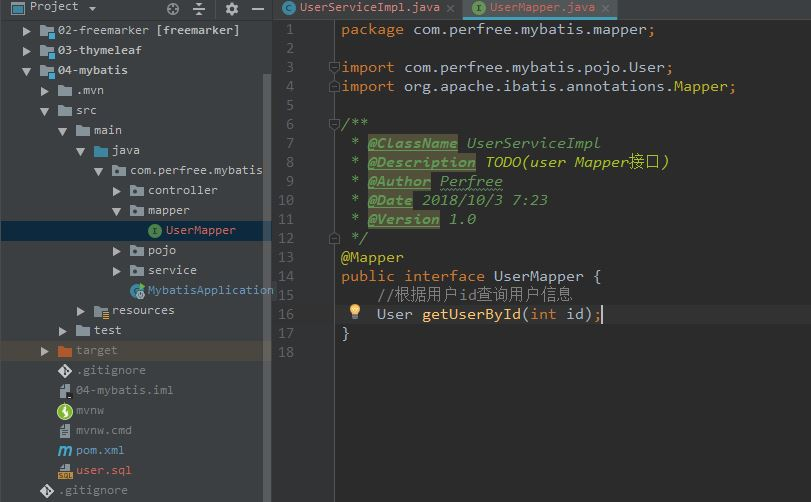

Mapper接口

Mapper.xml映射

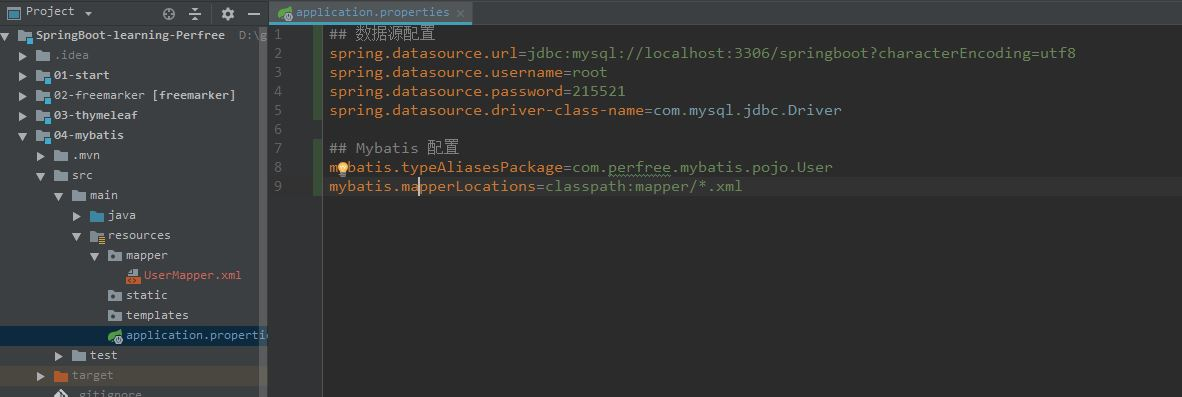

application配置

## 数据源配置
spring.datasource.url=jdbc:mysql://localhost:3306/springboot?characterEncoding=utf8
spring.datasource.username=root
spring.datasource.password=215521
spring.datasource.driver-class-name=com.mysql.jdbc.Driver

## Mybatis 配置
mybatis.typeAliasesPackage=com.perfree.mybatis.pojo.User
mybatis.mapperLocations=classpath:mapper/*.xml

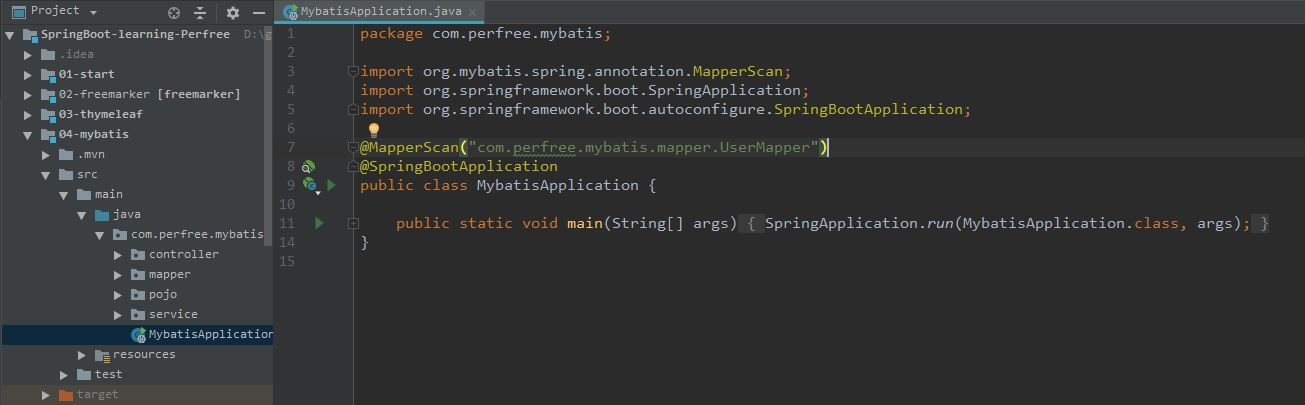

入口配置扫描mapper包

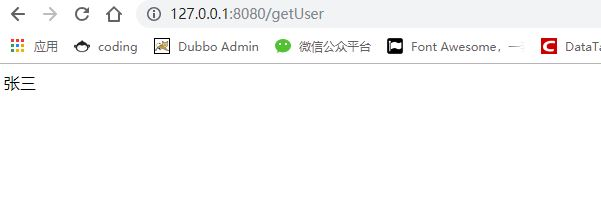

运行

到此简单的SpringBoot整合Mybatis的xml方式算是完成了,整合的时候注意对比文件路径及注解配置,祝你成功~
